Spesifikasi:
Model: CBD30-460
Engine Std / Drive Motor: Electric AC
Tire –
Transmisi –
Kapasitas: 3000 Kg
Dimensi
Dimensi : P X L X T
Dimensi (P) : 1916 mm , With platform 2333 mm
Dimensi (L) : 685 mm , Width Across Fork/Fork Width
Dimensi (T) : 1455 mm

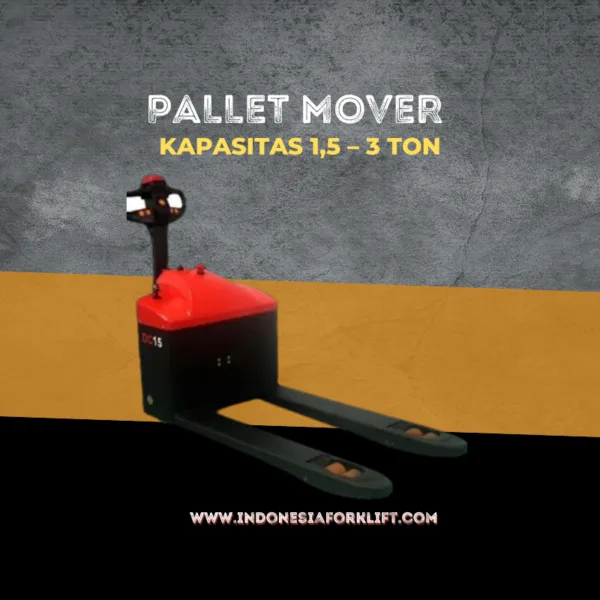

Pallet Mover
Bagian klasifikasi dari :
Class III merupakan “Electric Motor Hand Truck or Hand Rider Truck.”
Jenis pallet yang digunakan type open pallet
Pallet Mover Kapasitas 3 Ton, Platform, + Side Guard Std
Model : CBD30-460
Drive Motor : Electric AC
Controller : Curtis
Kapasitas : 3000 Kg
Battery Capacity : 24 V/ 270 Ah
Type of Battery : Acid Battery
Tire : Poly Urethane
Dimensi : P X L X T
Dimensi (P) : 1916 mm , With platform 2333 mm
Dimensi (L) : 685 mm , Width Across Fork/Fork Width
Dimensi (T) : 1455 mm
Dimensi Garpu Std p x l x t : 1150 mm x 170 mm x 75 mm
Maximum Lifting Height : 120 mm
Travel Speed, Load (No Load) : 6 Km/ Hr (6 Km/Hr)
Aisle Width Pallet 800x 1200 : 2435 mm
Aisle Width Pallet 1000x 1200 : 2358 mm
